Lithium Ion Battery Washing Test Chamber With PLC Touch Control Remote Control

Name: Lithium Ion Battery Washing Test Chamber With PLC Touch Control Remote Control
Brand: DGBELL
Price: 1 USD

Buy cheap Lithium Ion Battery Washing Test Chamber With PLC Touch Control Remote Control product

Brand Name : DGBELL

Model Number : BE-8109

Certification : CE/ISO

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 500 Sets per Month

Delivery Time : Negotiation

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.

Keywords : Battery Washing Test Equipments

Testing Rotary Plate Diameter : 500±10MM

Inner Barrel Diameter : 650MM

Inner Barrel Depth : 550MM

Plate Rotation Speed Range : 1—900rpm/min controllable

Speed Accuracy : 0.01

Servo Motor : Japan Panasonic servo motor

Time Setting : 0-999 hours (Adjustable)

Liquid Temperature Range : RT+10℃ ~ 80℃（controllable)

Contact Now

PLC Touch Control Remote Control Lithium ion Battery Washing Test Chamber

Lithium ion Battery Washing Test Chamber

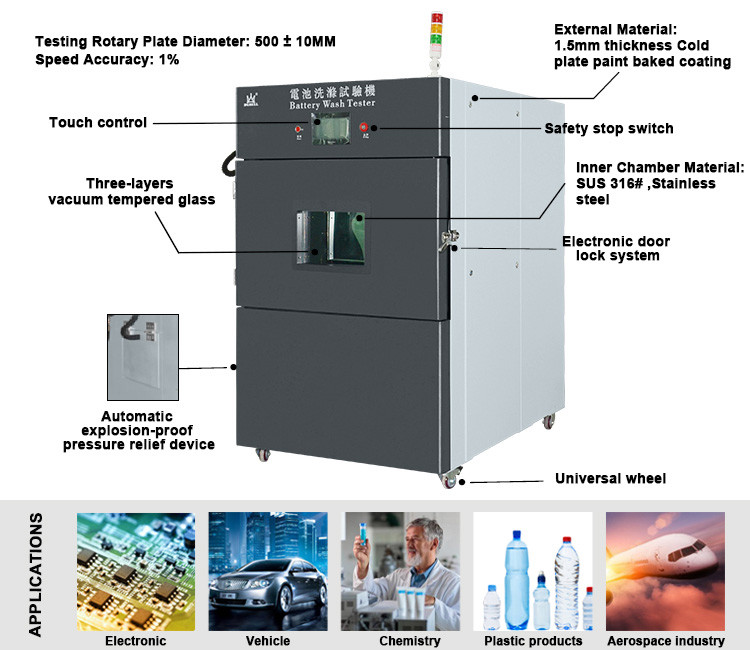

Lithium Ion Battery Washing Test Chamber With PLC Touch Control Remote Control

Application

DGBELL’s battery washing test chamber consisting of test chamber and washing chamber under the test chamber. Moreover, it motorized rotary propeller mounted inside of the test chamber and on the internal wall of test chamber, the drying system is mounted. This battery washing tester is designed as a lifting structure chamber which forms a sealed casing when the washing chamber rises to the upper edge of the test chamber. The control panel and water tank are designed on the rack, and the washing chamber is connected to the water tank. Reasonable test chamber structure shortens the test period and improves test accuracy.

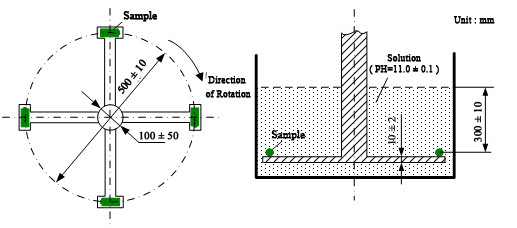

The schematic diagram of the test device for the battery washing tester is as follows:

Lithium Ion Battery Washing Test Chamber With PLC Touch Control Remote Control

Performance parameters

Model	BE-8109
Instruction	All-in-one structure, install explosion-proof lock + explosion-proof door
Testing Rotary Plate Diameter	500±10MM
Inner Barrel Diameter	650MM
Inner Barrel Depth	550MM
Plate Rotation Speed Range	1—900rpm/min controllable
Speed Accuracy	0.01
Control System	PLC touch control + Remote control
Control Method	Programmable, fully automatic testing.Returning to origin – adding water – raising – heating – dropping – soaking – stirring – draining – dewatering – de-cylindering – drying – complete.
Servo Motor	Japan Panasonic servo motor
Time Setting	0-999 hours (Adjustable)
Liquid Temperature Range	RT+10℃ ~ 80℃(controllable)
Water Temperature Deviation	±2℃
Water Temperature Accuracy	0.1℃
Water Temperature Heating Rate	RT ~ 45℃ ,Less than 40min
Drying Temperature Range	RT+10℃ ~ 80℃(controllable)
Wind Temperature Deviation	±2℃
Wind Temperature Display Accuracy	0.1℃
Wind Temperature Heating Rate	RT ~ 45℃ ,Less than 40min
Water Control Method	Automatic water pump
Heating Control System	Heating tube: water temperature control heating and thermostat control heating control separately
Transmission System	Driven by motor, screw drive control lift
Alarm Device	Tri-color warning light
Observation Window	370X350MM,Three-layers vacuum tempered glass
Internal Material	SUS 316# ,Stainless steel
External Material	1.5mm thickness Cold plate paint baked coating
Power Supply	AC 380V /14.0KW
Total Dimension	W1150 X H1780 X D1550 MM
USB Interface	With USB interface, test data can be output
