UL 2580 PLC PC Control External Fire Test Machine for EV Battery Safety

Name: UL 2580 PLC PC Control External Fire Test Machine for EV Battery Safety
Brand: DGBELL
Price: 1 USD

Buy cheap UL 2580 PLC PC Control External Fire Test Machine for EV Battery Safety product

Brand Name : DGBELL

Model Number : BE-8202-2500/BE-8202-3000

Certification : CE/ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 500 Sets per Month

Delivery Time : Negotiation

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.

Keywords : Battery Safty External Fire Test Equipment Manufacturers

Max. Load : 1000KG (2000KG,3000KG can be customized)

Object Holder Moving Speed : 6000mm/min (Adjustable)

Refractory Rack Moving Speed : 6000mm/min (Adjustable)

Control System : PLC touch screen close control + computer remote control

Ignition Mode : Automatic high pressure pack ignition

Power Supply : AC 380V,7.0KW/AC 380V,8.0KW

Weight : Approx 3.5 Tons/Approx 4.0 Tons

Contact Now

EV Battery Safety Tester External Fire Test Machine According to UL 2580

External Fire Exposure Test Machine Standard

UL 2580

Relative Standard test requirements

Test Object: Battery pack and system.
The test ambient temperature should be above 0 ℃, wind speed is not more than 2.5 km/h, and the SOC requirement of the battery pack is more than 50%.

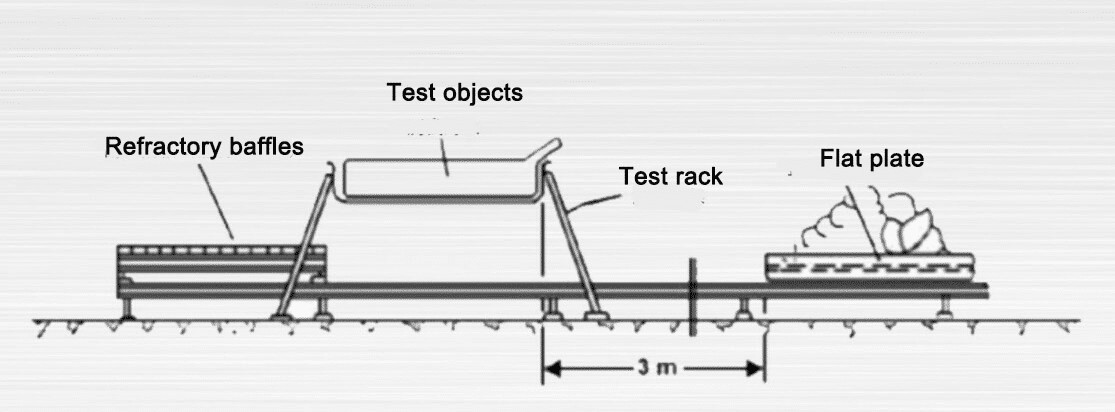

In the test, the size of the Flat plate with gasoline should exceed the horizontal size of the test object by 20 cm, no more than 50 cm. The height of the Flat plate should no more than 8 cm above the gasoline. The test object should be placed in the middle. The distance between the gasoline level and the test object is set to 50 cm. Inject water to the bottom of the Flat-plate before testing. The external burning diagram is shown in the graph.

UL 2580 PLC PC Control External Fire Test Machine for EV Battery Safety

Test Phase 1: Preheat.

Ignite the gasoline at least 3m away from the test object, and after 60 seconds of preheating, put the gasoline plate below the test device. If the gasoline flat plate size is too large to move, you can use the way of moving the test object and rack.

Test Phase 2: Direct burning.

The test object is directly exposed to the flame for 70 seconds.

Test Phase 3: Indirect burning.

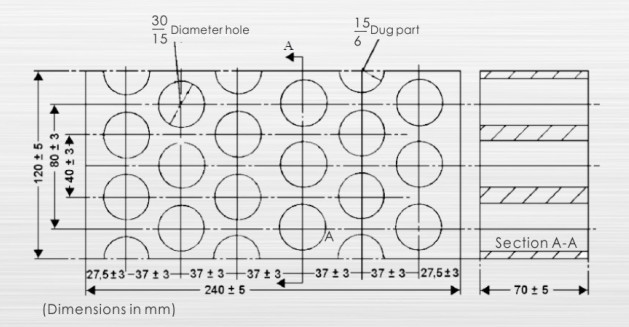

Cover the gasoline plate with refractory baffles. Keep the test object in this condition for 60 seconds. Alternatively, by mutual consent, the test object continues to be exposed directly to the flame for another 60 seconds. The refractory baffles are made of standard refractory bricks. The sieve hole size is shown in the figure below. Refractory can also be made with reference to this size.

UL 2580 PLC PC Control External Fire Test Machine for EV Battery Safety

Test Phase 4: Leave the fire source.

Remove the gasoline plate or test object. Then observe for 2h or when the test object exterior temperature drops below 45°C.

Technical Parameters

Product Name	External Fire Exposure Test Machine
Model	E-8202-2500	BE-8202-3000
Test Space	W1500 X D2500 X H800mm	W2000 X D3000 X H1000mm
Equipment Dimension	W7500 X D3700 X H960mm	W8500 X D4200 X H960mm
Movable Rack	W1500 X D3000 mm	W2200 X D3200 mm
Max. Load	1000KG (2000KG,3000KG can be customized)
Object Holder Moving Speed	6000mm/min (Adjustable)
Refractory Rack Moving Speed	6000mm/min (Adjustable)
Control System	PLC touch screen close control + computer remote control
Ignition Mode	Automatic high pressure pack ignition
Distance Between Burning Plate and gasoline	The distance between the gasoline and the test object can be adjusted within the range of 4 50cm~550mm. The defaulted 500mm; the bottom of the gasoline plate is filled with water.
Refractory Brick Size	In accordance with the standard of ECER100, Refractory Brick Size 240mm120mm70mm.
Gasoline Plate Size	3 gasoline plates-can be changed easily according to the test object size. the height of gasoline plate is no more than 80cm from the gasoline level
Power Supply	AC 380V,7.0KW	AC 380V,8.0KW
Weight	Approx 3.5 Tons	Approx 4.0 Tons
Other requirements	The ignition area of gasoline plate can be adjusted according to requirements. Automatic gasoline filling. Remote control. Electrical ignition according to test requirements. The video monitoring system, lighting system.
