UN38.3 UL 1642 Free Fall Impact Test Equipment , Mechanical Shock Test Machine For Lab

Name: UN383 UL 1642 Free Fall Impact Test Equipment Mechanical Shock Test Machine For Lab
Brand: DGBELL
Price: 1 USD

Buy cheap UN38.3 UL 1642 Free Fall Impact Test Equipment , Mechanical Shock Test Machine For Lab product

Brand Name : DGBELL

Model Number : BE-SKT-10

Certification : CE/ISO

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 500 Sets per Month

Delivery Time : Negotiation

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.

Specified Load : 10 kg, (Including fixtures and test specimen)

Bench Dimension : L200×W200 mm

Pulse Wave : Half sinusoidal wave

Pulse Duration : 0.6～20ms

External Dimension : L1000mm×W500mm×H2700mm

Total Weight : 1500 kg

Impact Form : Free fall

Max. Drop Height : 1500mm

Contact Now

Lab Universal Free Fall Impact Test Equipment Mechanical Shock Test Machine Manufacture According to UN38.3

Application

DGBELL’s Shock Test System used to measure and determine the impact resistance of a product or package. It is mainly used to evaluate the reliability of the function and the integrity of the structure of the test product under an impact environment. Suitable for impact testing of aerospace, aerospace, marine, military, consumer electronics, automotive, household appliances and display equipment.

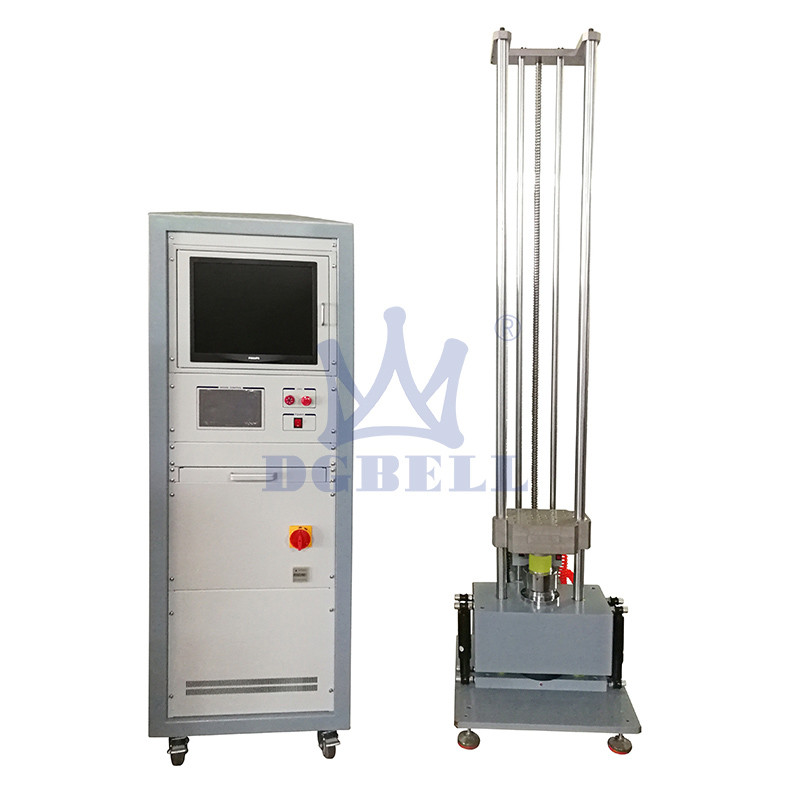

UN38.3 UL 1642 Free Fall Impact Test Equipment , Mechanical Shock Test Machine For Lab

Test requirements

1. IEC 62133

2. UL 1642

3. UN 38.3

Main Technical Parameters

Model		BE-SKT-10
Specified Load		10 kg, (Including fixtures and test specimen)
Bench Dimension		L200×W200 mm
Pulse Wave		Half sinusoidal wave
Shock Impact Peak Acceleration		150～15000 m/s2
Pulse Duration		0.6～20ms
External Dimension		L1000mm×W500mm×H2700mm
Total Weight		1500 kg
Impact Form		Free fall
Max. Drop Height		1500mm
Power Supply		Three phase 380V,50/60 Hz
Hydraulic Source		With the equipment
Ambient Condition	Temperature	0～40℃
	Humidity(25℃)	＜85％
Reliability		1.Average failure-free accumulation working time ≥ 1000h;
		2.The half-sine waveform generator has no less than 5000 consecutive impacts;
		3.The half-sine waveform generators have a storage time of no less than 5 years in a clean, room temperature environment.
Testing System		Shock DAQ, Impact, collision measurement control system
Usage Standard		GJB150,GJB360,GJB548,GB/T2423,GJB1217,JJG497,GIEC68-2-27
Testing Standard		Acceleration amplitude, pulse width, uniformity, and lateral motion ratio meet the requirements of JJG541-88.
